DOWNLOAD PDF FOR JOHN DEERE 450 - DRILL, GRAIN PARTS CATALOGUE MANUAL PC2250

FILE SIZE : 22.7 MB
TOTAL PAGES : 374
P/N : PC2250
LANGUAGE : ENGLISH
DATE : JAN 01 2024

MODEL COVERED :
450 - DRILL, GRAIN

CONTENTS INCLUDED :
COVER - IMAGE

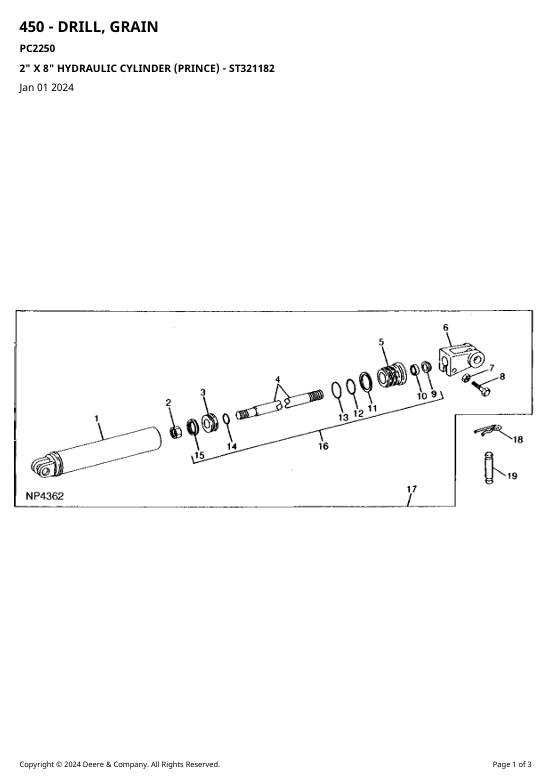

2 X 8 HYDRAULIC CYLINDER (PRINCE) - ST321182

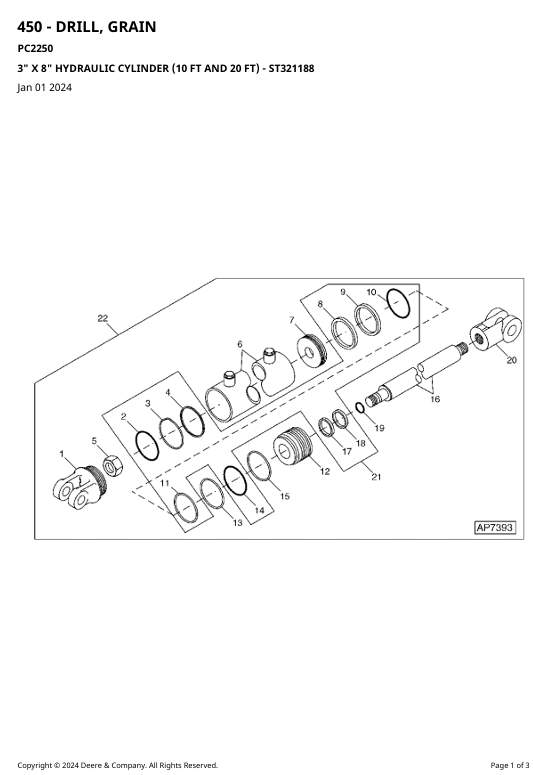

3 X 8 HYDRAULIC CYLINDER (10 FT AND 20 FT) - ST3211

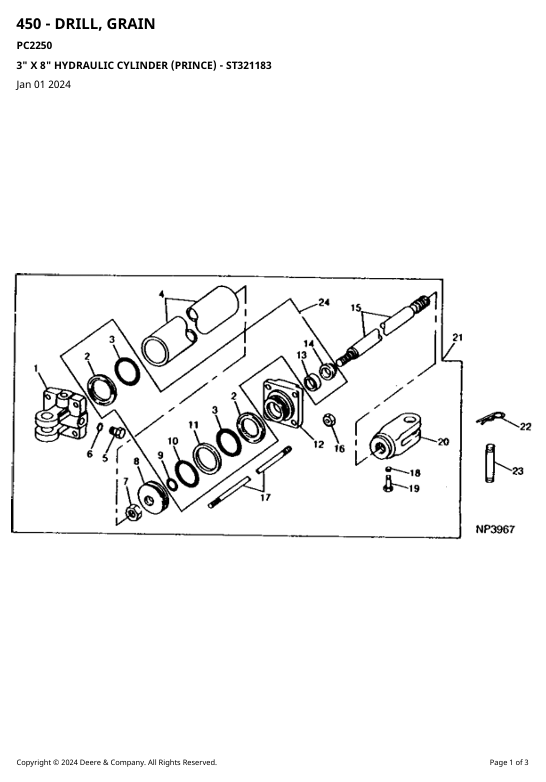

3 X 8 HYDRAULIC CYLINDER (PRINCE) - ST32118
3-POINT HITCH TUBE (SEMI-INTEGRAL FOLDING) - ST321
4 X 16 HYDRAULIC CYLINDER (EATON) - ST3211
4 X 16 HYDRAULIC CYLINDER (JOHN DEERE) - ST32118
4 X 16 Hydraulic Cylinder (Prince) ( - 705100) - ST3211
4 X 32 HYDRAULIC CYLINDER (JOHN DEERE) - ST32118
15-INCH (38.1 CM) WHEEL AND AXLE (8-FOOT DRILL) - ST321
20-INCH WHEEL AND AXLE (10, 12 AND 13-FOOT DRILLS) - ST32
ACREMETER AND BRACKET - ST321103
ADJUSTABLE SINGLE-DISK BOOT, TOE SCRAPER AND COVER
CHAINS
AGITATOR SHAFT AND GEARS - ST321102
CASTER WHEEL AND FRAME (2 & 3 DRILL HITCH, ENDWHEEL & HYD
. FOLD
CENTER DRILL DRAWBAR (FOLDING) - ST321072
Combination Box (Grain Fertilizer) (5163 - ) - ST32109
DECALS - ST321192
DECALS - ST321193
DECALS - ST321194
DEPTH BANDS - ST321120
Depth Gauging Press Wheel - ST321121
DOUBLE DISK BOOT, DRAWBAR AND BOLT-ON TYPE BLADE - ST3
DOUBLE SELECTOR CONTROL VALVE HYDRAULIC HOSES AND
FITTINGS (DRAWN F
DOUBLE-DISK BLADE AND DRAWBAR (ANTI-FRICTION BEARINGS)
DOUBLE-DISK BOOT AND SCRAPER - ST321118
DOUBLE-RUN COUNTERSHAFT (ENDWHEEL) - ST32110
Double-Run Drive Shaft And Sprockets (Endwheel) - ST3211
DOUBLE-RUN FEED CUPS AND SHAFT - ST321100
DOUBLE-RUN GRASS SEED DRIVE - LH ONLY - ST3211
DRAWBAR HITCH PARKING STAND (FOLDING) - ST32106
DRAWBAR HITCH TUBE AND TONGUE (DRAWN FOLDING) - ST
DRAWBAR SUPPORT (FOLDING) - ST321059
DRILL-SHAFT TURN INDICATOR KIT - ST321191
END PANELS AND GRAIN BOX SHEETS (450 SERIES) SMALL BOX (2.0
BU.FT
END PANELS AND GRAIN BOX SHEETS (LARGE BOX (2.8 BU.FT.)) - S
EXTRA LONG SINGLE-DISK BOOT DRAWBAR - ST32111
FERTILIZER BAFFLES - ST321095
FERTILIZER BOTTOM SPOUT SUPPORT - ST321096
FERTILIZER BOX TUBES AND SPOUTS - ST321110
FERTILIZER FEEDSHAFT, BEARINGS AND FEED WHEEL - ST321
FERTILIZER GEAR CASE, SPROCKETS, AND DRIVE - ST3211
FERTILIZER GEARS, CARRIER, AND CROWN GEAR - ST32
FLUTED FEED GRASS SEED DRIVE SHAFT - ST321131
FLUTED-FEED CUP - ST134520
FLUTED-FEED FEED CUPS AND SHAFTS - ST32109
FLUTED-FEED RH AND LH GRASS SEED DRIVE, DOUBLE RUN RH
GRASS SEED
FLUTED-FEED SHIFTER LEVER AND INDEX LABEL - ST3210
FOLDING AND LATCHING HYDRAULIC CYLINDERS, HOSES AND
FITTINGS (FOLD
FOLDING TONGUE HITCH - ST321055
FOOTBOARD AND SUPPORTS - ST321123
FOOTBOARD GRASS SEED TUBE SUPPORTS - ST32113
FOOTBOARD SUPPORTS AND BRACKETS (2 AND 3 DRILL HITCH) - ST
FRONT FRAME (FOLDING) - ST321079
FRONT HITCH (2-DRILL, ENDWHEEL) - ST321135
FRONT HITCH (3-DRILL HITCH) - ST321136
FRONT MOUNTED HYDRAULIC MARKER LIFT LINKAGE (SINGLE
DRILL)
FRONT MOUNTED MARKER ARM AND DISK (SINGLE ENDWHEEL) - S
FRONT TRANSPORT HYDRAULIC CYLINDER, HOSES & FITTINGS (
DRAWN FOLDING WITHOU
Front Unit Drawbar And Beam Assembly (Hydraulic Fold) ( - 705100)
GANG PRESS LIFT - ST321125
GANG PRESS PIVOT AND WHEEL - ST321126
GRAIN AND FERTILIZER FLUTED-FEED DRIVE - ST32110
Grain Box Partitions, Large Fertilizer Box (3.4 BU.FT.) ( - 5162) - ST
GRAIN FEED CUP SUPPORT - ST321087
GRASS SEED BOX - ST321128
GRASS SEED FEED SHAFT - ST321129
HITCH AND FRONT FRAME (8 AND 10-FOOT ENDWHEEL) - ST32
HITCH AND FRONT FRAME (ENDWHEEL)(12 AND 13-FOOT) - ST3
HITCH BUMPER - ST321143
HITCH CROSSBAR, PIVOT AND NOSE GUIDE (SEMI-INTEGRAL
FOLDING)
HITCH FENDERS (FOLDING) - ST321163
HITCH HOSES AND FITTINGS (HYDRAULIC FOLD) - ST3211
HITCH SUPPORT FRAME AND PIVOT FOR CENTER DRILL (FOLDING
) - S
HITCH SUPPORT FRAME FOR WING DRILL (FOLDING) - ST321
HITCH TONGUE SUPPORT (FOLDING) - ST321062
HITCH WHEEL AND AXLE (FOLDING) - ST321078
HITCH YOKE AND HINGES (FOLDING) - ST321073
HOSE AND HARNESS STORAGE BRACKET - ST321162
HYDRAULIC CYLINDER LIFT BRACKET AND SUPPORTS (ENDWHEEL
DRILLS
HYDRAULIC CYLINDER LIFT BRACKETS AND SUPPORTS (FOLDING)
HYDRAULIC FOLDING CYLINDER AND FOLDING LINKAGE - ST32
HYDRAULIC HOSE SUPPORT (DRAWN FOLDING) - ST3210
HYDRAULIC HOSE SUPPORT (HYDRAULIC FOLDING) - ST32
HYDRAULIC HOSE SUPPORT AND CLAMP - ST32108
HYDRAULIC LATCHING CYLINDER AND LINKAGE (FOLDING) - ST3
Hydraulic Marker Bearing And Disk (Rear Mounted) ( - XXXXXX) - ST
Hydraulic Marker Bearing And Disk (Rear Mounted) (XXXXXX - ) - S
HYDRAULIC MARKER HOSES AND FITTINGS - R.H. AND L.H. (
FOLDING)
HYDRAULIC MARKER HOSES AND FITTINGS (L.H.) (FOLDING) - ST3
Implement Warning Light Kit ( - 6343) - ST321157
Implement Warning Lights (6344 - ) - ST321158
INSIDE SCRAPER FOR SINGLE-DISK BOOT - ST321115
JACK AND PINS - ST321058
LARGE FERTILIZER BOX ENDS AND FRONT SHEET (3.4 BU.FT.) - ST
LID AND SEED CHARTS - ST321085
LOW DRAWBAR HITCH (DRAWN FOLDING) - ST321066
MARKER ARM (4-7 FT., 8-11 FT.) - ST321150
Marker Arm (12-15 FT., 16-20 FT.) ( - 705100) - ST32114
MARKER BASE AND LIFT CHANNEL (SINGLE DRILL) - ST3211
MARKER BASE AND LIFT CHANNEL (TWO AND THREE-DRILL HITCH
AND FOLDING
Marker Plate (Endwheel) ( - 715100) - ST321154
MARKER PLATES (FOLDING) - ST321155
Marker Sequence Valve ( - 8577) - ST321178
Marker Sequence Valve (8578 - ) - ST321179
Marker Sequence Valve Bracket ( - 715100) - ST321180
MECHANICAL DEPTH STOP - ST321189
OPENER HYDRAULIC CYLINDER, HOSES AND FITTINGS (SINGLE
ENDWHEEL
OPENER HYDRAULIC CYLINDERS, HOSES AND FITTINGS (FOLDING)  307
OPENER HYDRAULIC HOSES AND FITTINGS (2-DRILL HITCH) (
ENDWHEEL)
OPENER HYDRAULIC HOSES AND FITTINGS (3-DRILL HITCH) (10
FOOT DRI
OPENER HYDRAULIC HOSES AND FITTINGS (3-DRILL HITCH) (12 AND
13-FOOT D
PLAIN GRAIN FLUTED-FEED DRIVE SHAFT - ST321104
PRESSURE SHAFT, LIFT ARMS, PRESSURE ARMS, AND BEARINGS
ST
REAR FERTILIZER SHEET AND FILLER - ST321094
REAR HITCH FRAME (FOLDING) - ST321070
REAR UNIT HINGE AND HITCH (HYDRAULIC FOLD) (SERIAL NO.
705100)
RUSSIAN SAFETY DECALS - ST321195
SAFETY CHAINS - ST321054
SELECTOR CONTROL VALVE - ST321181
SINGLE SELECTOR CONTROL VALVE HYDRAULIC HOSES AND
FITTINGS (DRAWN
SINGLE SELECTOR CONTROL VALVE HYDRAULIC HOSES AND
FITTINGS (SEMI-INTEGRA
SINGLE-DISK BLADE (ADJUSTABLE SINGLE-DISK BOOT) - ST32
SINGLE-DISK DRAWBAR - ST321111
SMALL FERTILIZER BOX ENDS, FRONT SHEET, AND PARTITIONS (2.4
BU.FT
SWAY CONTROL (HYDRAULIC FOLD) - ST321140
SWAY CONTROL TUBES AND BRAKES - ST321139
TELESCOPING LINKS (2 AND 3 DRILL HITCH) (ENDWHEEL)
TRACK ERADICATOR - ST321156
TRACK ERADICATOR HYDRAULIC CYLINDERS, HOSES AND
FITTINGS
TRANSPORT LIGHTS AND BRACKETS - ST321160
TRU-VEE OPENER ATTACHMENT AND ADJUSTABLE DEPTH GAUGE
WHEEL ATTAC
WIDE-SWING DRAWBAR SUPPORT ADAPTER (FOLDING)
