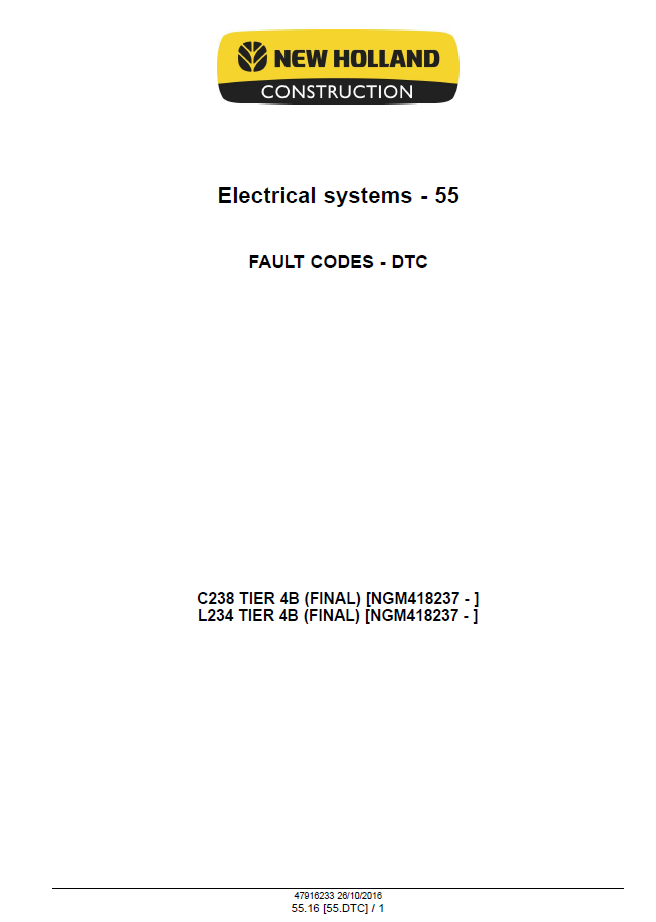

DOWNLOAD PDF FOR NEW HOLLAND L234 TIER 4B (FINAL) 200 SERIES SKID STEER LOADER C238 TIER 4B (FINAL) 200 SERIES COMPACT TRACK LOADER SERVICE MANUAL 48076793

PIN NGM418237 AND ABOVE
PIN NGM418237 AND ABOVE

PUBLICATION DATE : OCTOBER 2016

MODEL COVERED :
L234 TIER 4B (FINAL) 200 SERIES SKID STEER LOADER C238 TIER 4B (FINAL) 200 SERIES COMPACT TRACK LOADER

CONTENT INCLUDED :

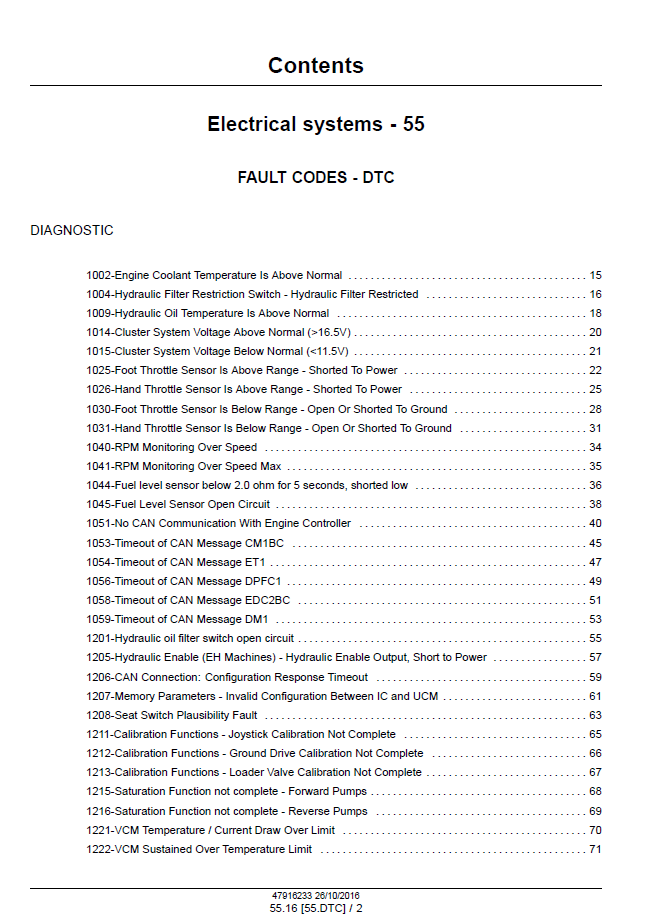

ELECTRICAL SYSTEM
ENGINE COOLANT TEMPERATURE IS ABOVE NORMAL
HYDRAULIC FILTER RESTRICTIONS WITCH - HYDRAULIC FILTER RESTRICTED
HYDRAULIC OIL TEMPERATURE IS ABOVE NORMAL
CLUSTER SYSTEM VOLTAGE ABOVE NORMAL (>16.5V)
CLUSTER SYSTEM VOLTAGE BELOW NORMAL (<11.5V)
FOOT THROTTLE SENSORIS ABOVE RANGE - SHORTED TO POWER
HAND THROTTLE SENSORIS ABOVE RANGE - SHORTED TO POWER
FOOT THROTTLE SENSORIS BELOW RANGE - OPEN OR SHORTED TO GROUND
HAND THROTTLE SENSORIS BELOW RANGE - OPEN OR SHORTED TO GROUND
RPM MONITORING OVER SPEED
RPM MONITORING OVER SPEED MAX
FUEL LEVEL SENSOR BELOW 2.0 OHMF OR 5 SECONDS, SHORTED LOW
FUEL LEVEL SENSOR OPEN CIRCUIT
NO CAN COMMUNICATION WITH ENGINE CONTROLLER
TIMEOUT OF CAN MESSAGE CM1BC
TIMEOUT OF CAN MESSAGE ET1
TIMEOUT OF CAN MESSAGE DPFC1
TIMEOUT OF CAN MESSAGE EDC2BC
TIMEOUT OF CAN MESSAGE DM1
HYDRAULIC OIL FILTERS WITCH OPEN CIRCUIT
HYDRAULIC ENABLE (EH MACHINES) - HYDRAULIC ENABLE OUTPUT, SHORT TO POWER
CAN CONNECTION : CONFIGURATION RESPONSE TIMEOUT
MEMORY PARAMETERS - INVALID CONFIGURATION BETWEEN IC AND UCM
SEAT SWITCHPLAUSIBILITY FAULT
CALIBRATION FUNCTIONS - JOYSTICK CALIBRATION NOT COMPLETE
CALIBRATION FUNCTIONS - GROUND DRIVE CALIBRATION NOT COMPLETE
CALIBRATION FUNCTIONS - LOADER VALVE CALIBRATION NOT COMPLETE
SATURATION FUNCTION NOT COMPLETE - FORWARD PUMPS
SATURATION FUNCTION NOT COMPLETE - REVERSE PUMPS
VCM TEMPERATURE / CURRENT DRAW OVER LIMIT
VCM SUSTAINED OVER TEMPERATURE LIMIT

FILE SIZE : 1.45 MB
TOTAL PAGE : 361
LANGUAGE : ENGLISH

INSTANT DOWNLOAD

✔ INSTANT PDF DOWNLOAD AFTER PURCHASE
✔ PRINTABLE HIGH-QUALITY PDF
✔ SEARCHABLE DIGITAL MANUAL
✔ COMPATIBLE WITH PC, MAC, TABLET MOBILE DEVICES
✔ SECURE DIGITAL DELIVERY
✔ NO PHYSICAL SHIPPING REQUIRED
